With over 100 million devices already deployed in the field, Wi-SUN revolutionizes how smart cities, utilities, buildings and industrial networks connect devices with secure IP-based wireless mesh networking that scales from sites to neighborhoods to entire regions.
Download the Digi XBee® for Wi-SUN® Datasheet: Visit our Product Page
Build
Deploy
Manage
The industry's first complete, Wi-SUN CERTIFIED™ solution with purpose-built Digi XBee Wi-SUN modules, flexible Digi XBee Hive™ Border Routers, field and cloud-based Wi-SUN network lifecycle management tools
– interoperable and optimized to work seamlessly together from day one.
.png "tech talks webinar")
Beyond Metering: Silicon Labs and Digi - Unlocking New Potential with WI-SUN
Learn more about how Wi-SUN works and the Digi XBee for Wi-SUN solution in the on-demand Tech Talks series webinar with Digi and Silicon Labs

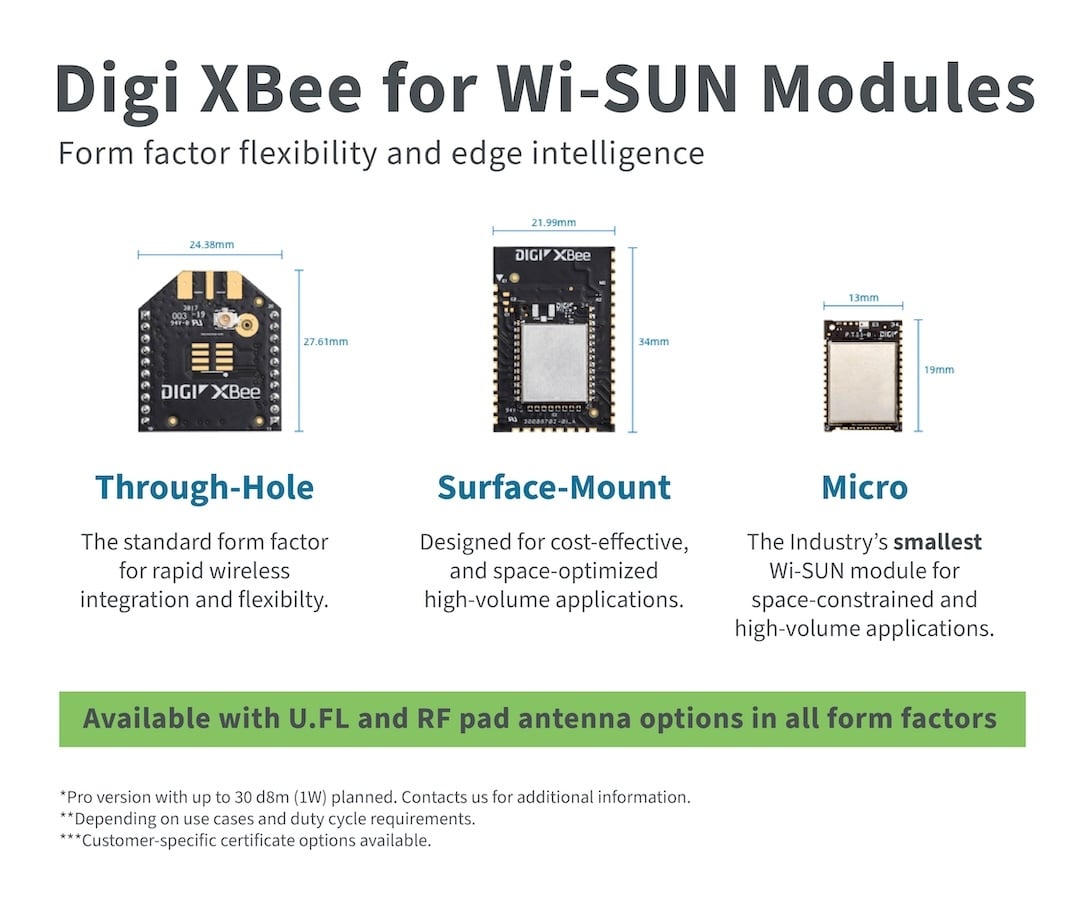

.jpg?width=1080&name=xbee-wisun-graphics-01%20(2).jpg "xbee-wisun-graphics-01 (2)")

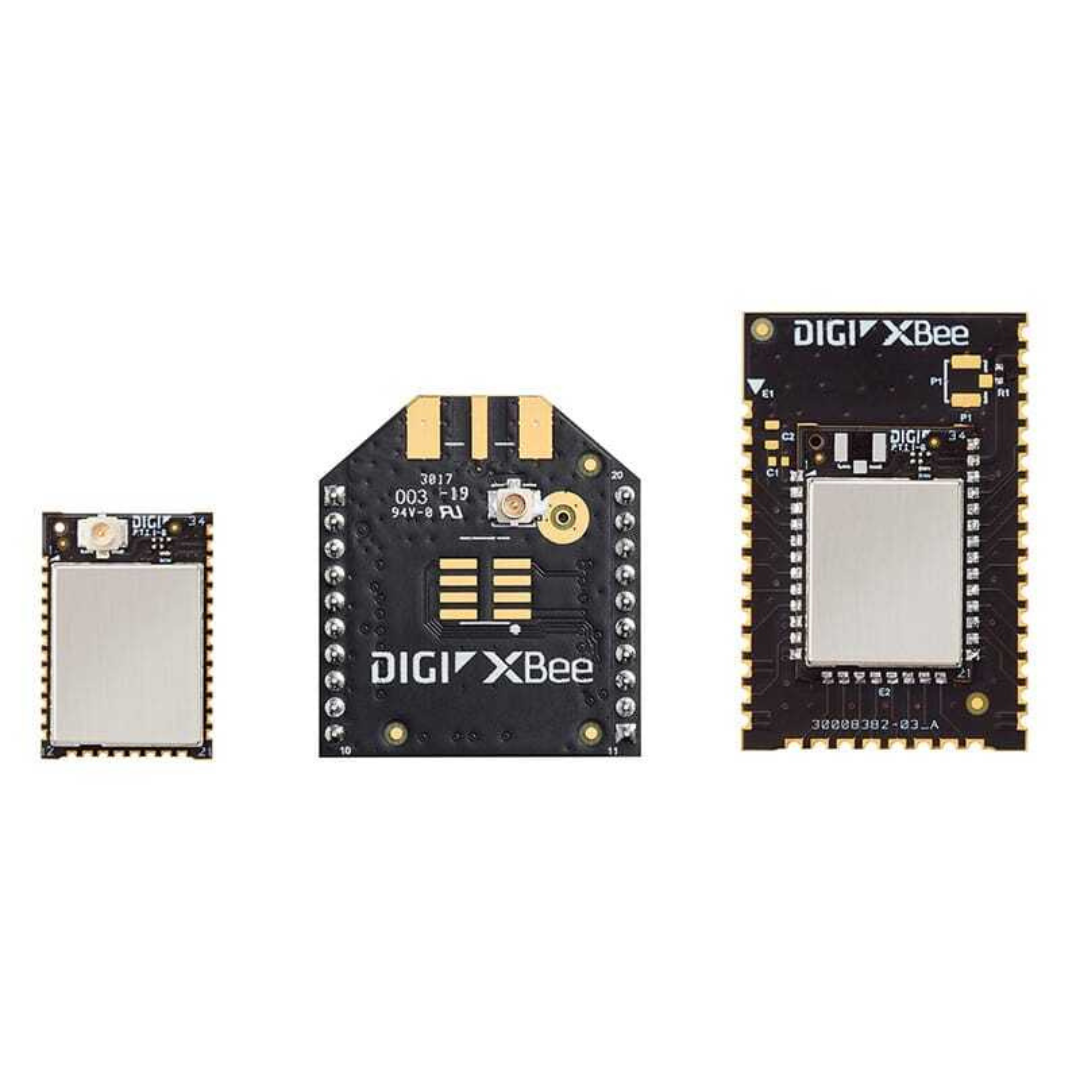

- Built on Silicon Labs EFR32FG2x SoCs with Secure Vault™
- Full Function Node (FFN) and Leaf Node (LFN) modules to provide cost and performance optimized options
- Support for FSK data rates from 30 up to 500 Kbps (LFN/FFN) and OFDM data rates from 12 Kbps up to 2.4 Mbps (FFN)
- Leaf Node supports battery-powered applications with up to 10-15 years of battery life**
- Leaf Node with Bluetooth LE for optional provisioning and sensor connectivity capabilities
- Up to 16 dBm transmit power for FFN nodes, up to 20 dBm transmit power for Leaf nodes*
- On-module edge intelligence and local control with custom MicroPython applications
- Local interface support for GPIO, I2C, SPI, and UART
- Pre-injected certificates for simplified PKI deployment and management*** using Wi-SUN Alliance approved Root CA
- Industrial operating temperature range of -40°C
to 85°C - Simplified global deployment with regulatory approvals for US, Canada, Europe, India, and Japan
- Cisco OpenCSMP support for seamless integration into existing field network management infrastructures
- Wi-SUN CERTIFIED™ for proven FAN 1.1 standard compatibility with the broader Wi-SUN ecosystem
Suitable for use cases and applications across many industries

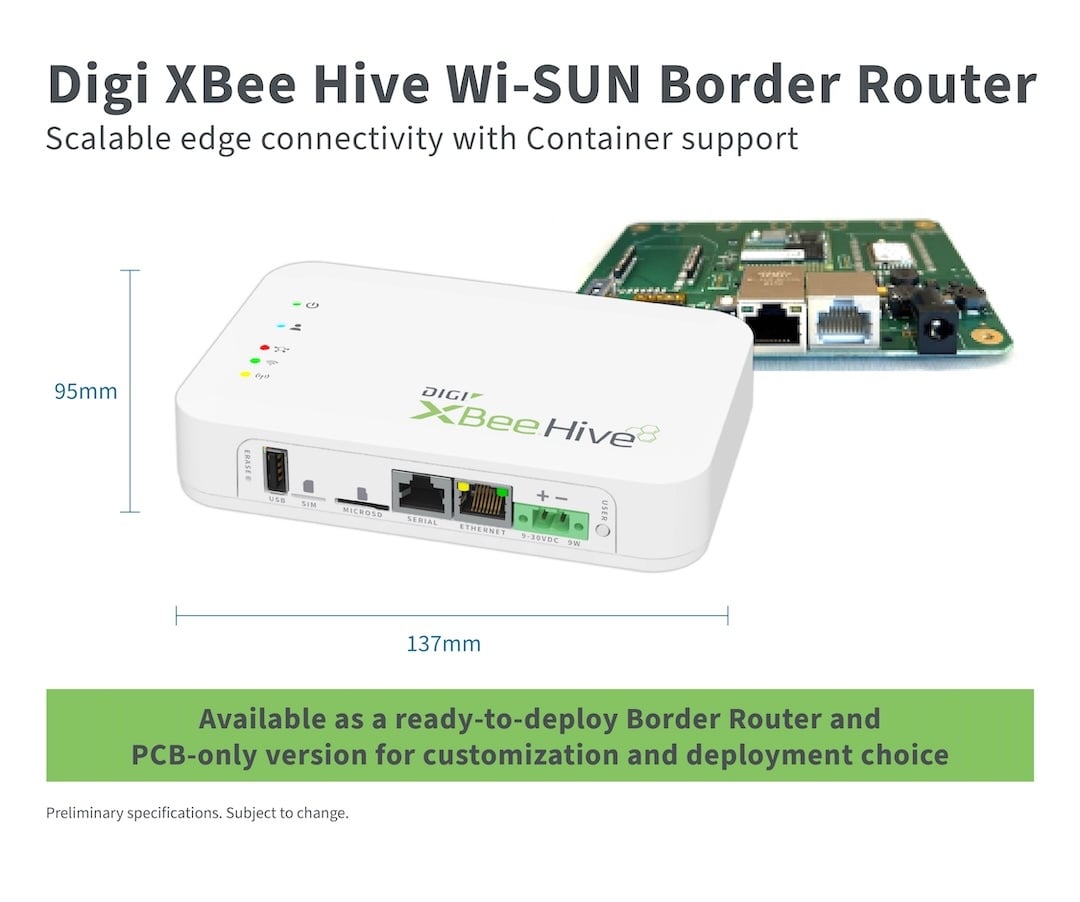

.jpg?width=1080&name=xbee-wisun-graphics-02%20(2).jpg "xbee-wisun-graphics-02 (2)")

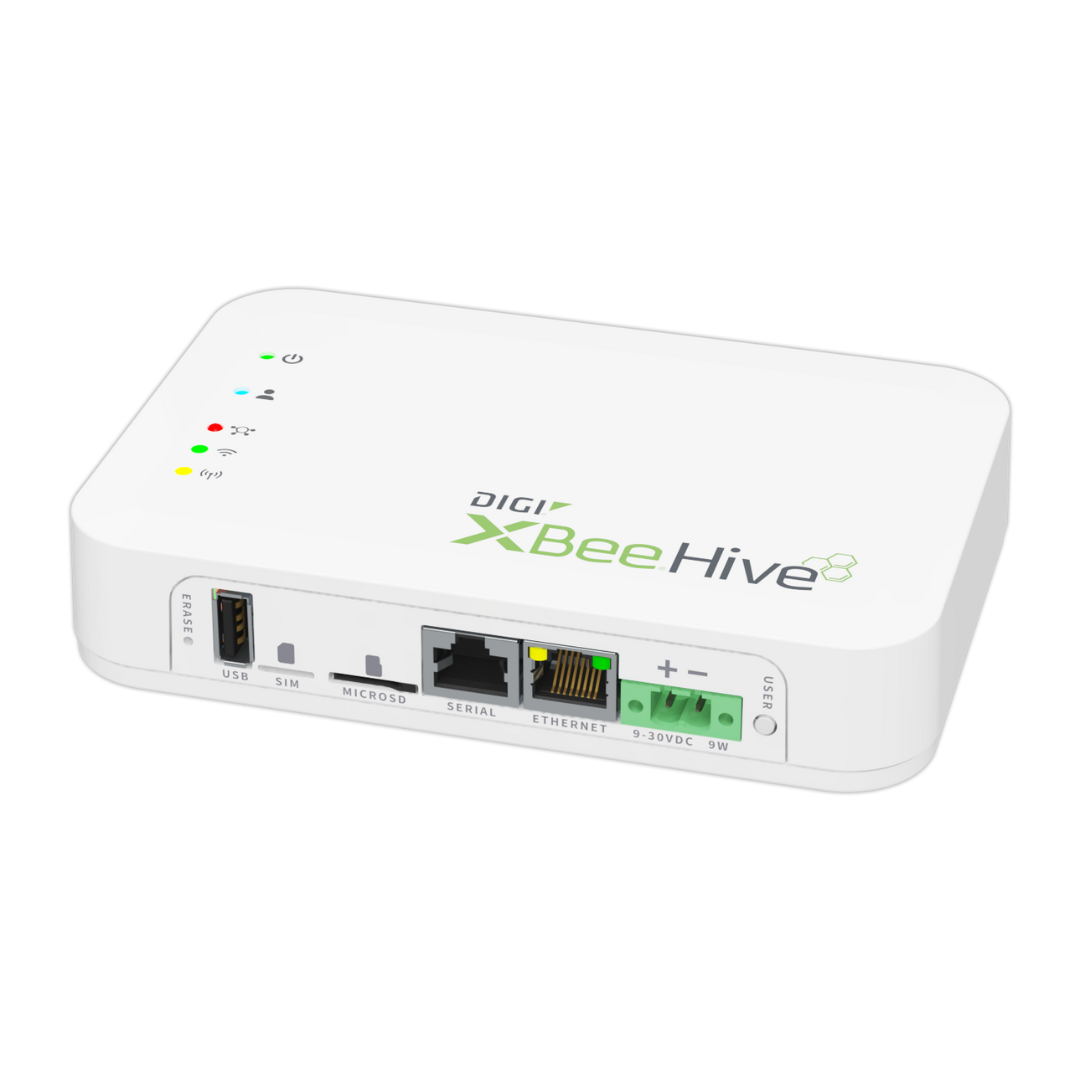

- Compact and cost-effective Wi-SUN Border Router with network scalability of up to 300 connected Wi-SUN nodes
- Scalable performance, and integrated connectivity options
- Dual Cortex-A7 @ 650 MHz and Cortex-M4 @ 209 MHz
- Integrated Wi-SUN and 10/100 Mbit Ethernet connectivity
- LTE Cat 1, dual-band Wi-Fi 5 with Bluetooth 5.2 options
- Software-selectable RS232/RS485 interfaces
- USB 2.0 and microSD storage extension
- Extended operating temperature range of -40°C up to 60°C depending on variant
- Edge compute capabilities with Linux Container and Python 3 support for local compute, data aggregation, protocol translation, and seamless cloud integration
- Built on Digi Accelerated Linux with Digi TrustFence® security
- IPv6/v4 address translation for seamless integration into existing IT infrastructures
- Full Wi-SUN network management and Border Router remote monitoring capabilities through Digi Remote Manager
- Optional global Digi cellular data plans with seamless management available
Remote Network, Node and Border Router Management
Learn more about how Digi Remote Manager helps manage your remote network and devices like Wi-SUN nodes and Digi XBee Hive Border Routers at scale

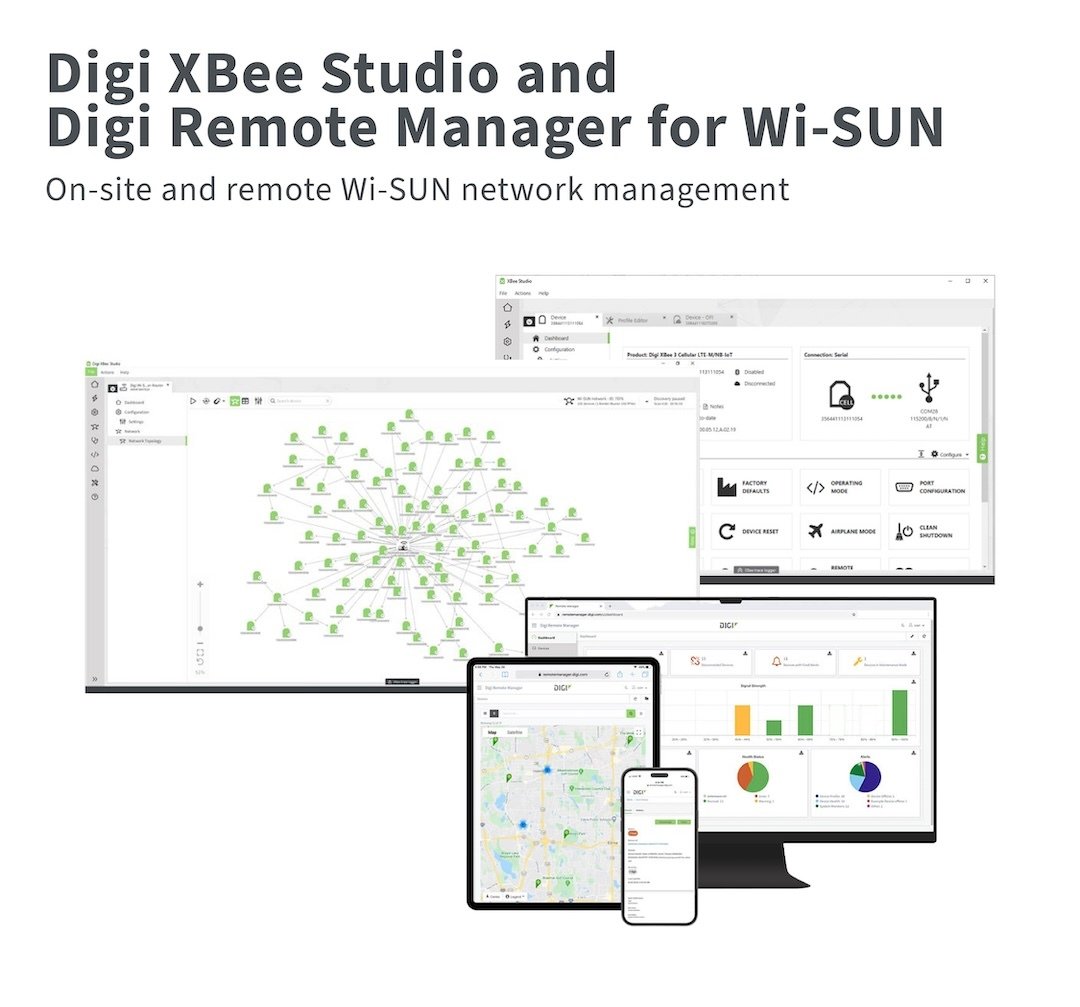

.jpg "xbee-wisun-graphics-03 (2)")

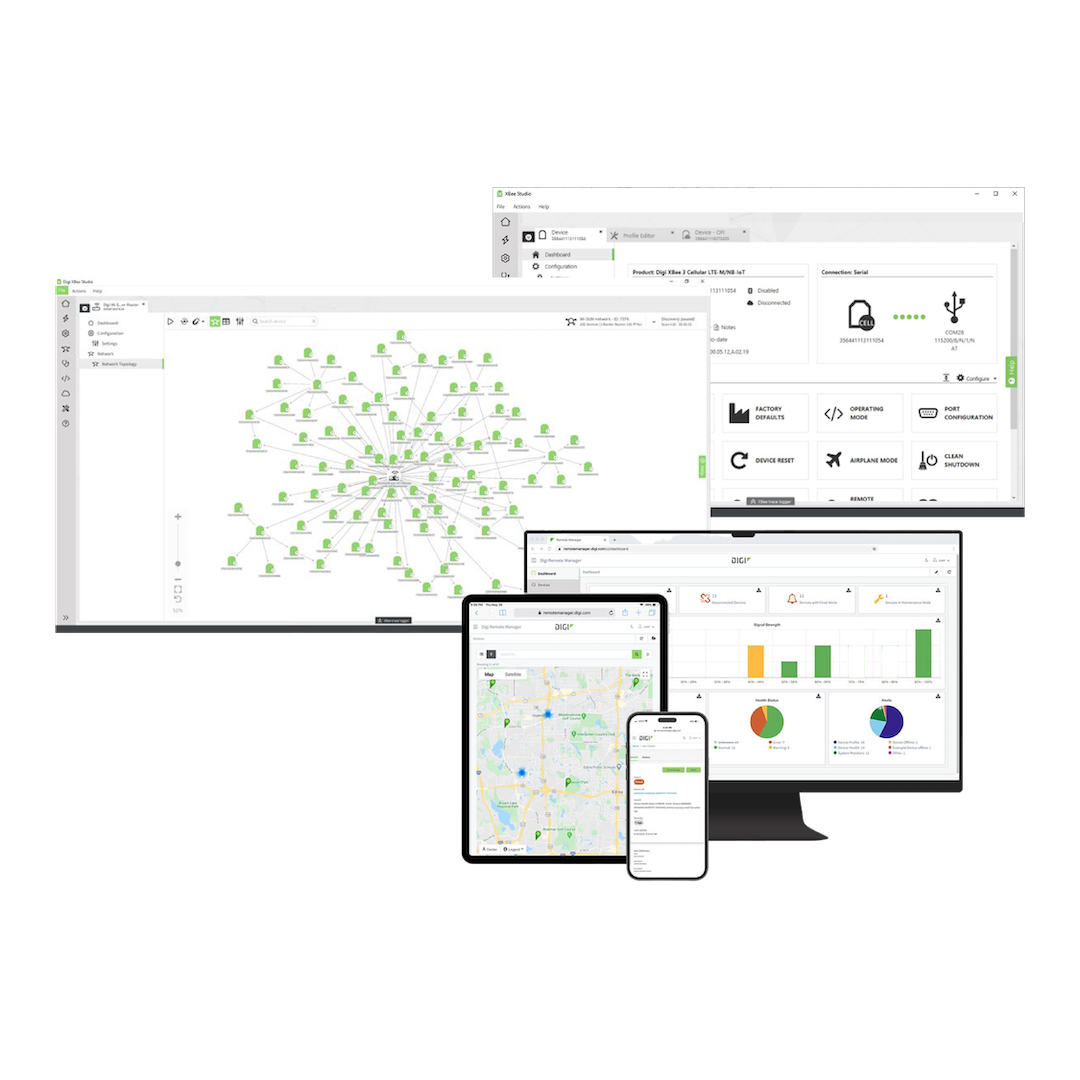

- Manage the configuration, performance, and operation of your Wi-SUN network and nodes, including digital certificate (PKI) lifecycle and provisioning
- Use our proven cloud-based Digi Remote Manager, mobile applications, and local Digi XBee tools for deployment, monitoring and provisioning
- Automate firmware/software over-the-air updates (OTA) to enhance functionality, stay in compliance, and scale deployment
- Receive real-time alerts and detailed reports on network health and device conditions
- Integrate device data through open APIs for deeper insights and control with your third-party applications
- Connect to your existing public cloud (AWS, Azure, GCP, others), private cloud, or on-prem backend
